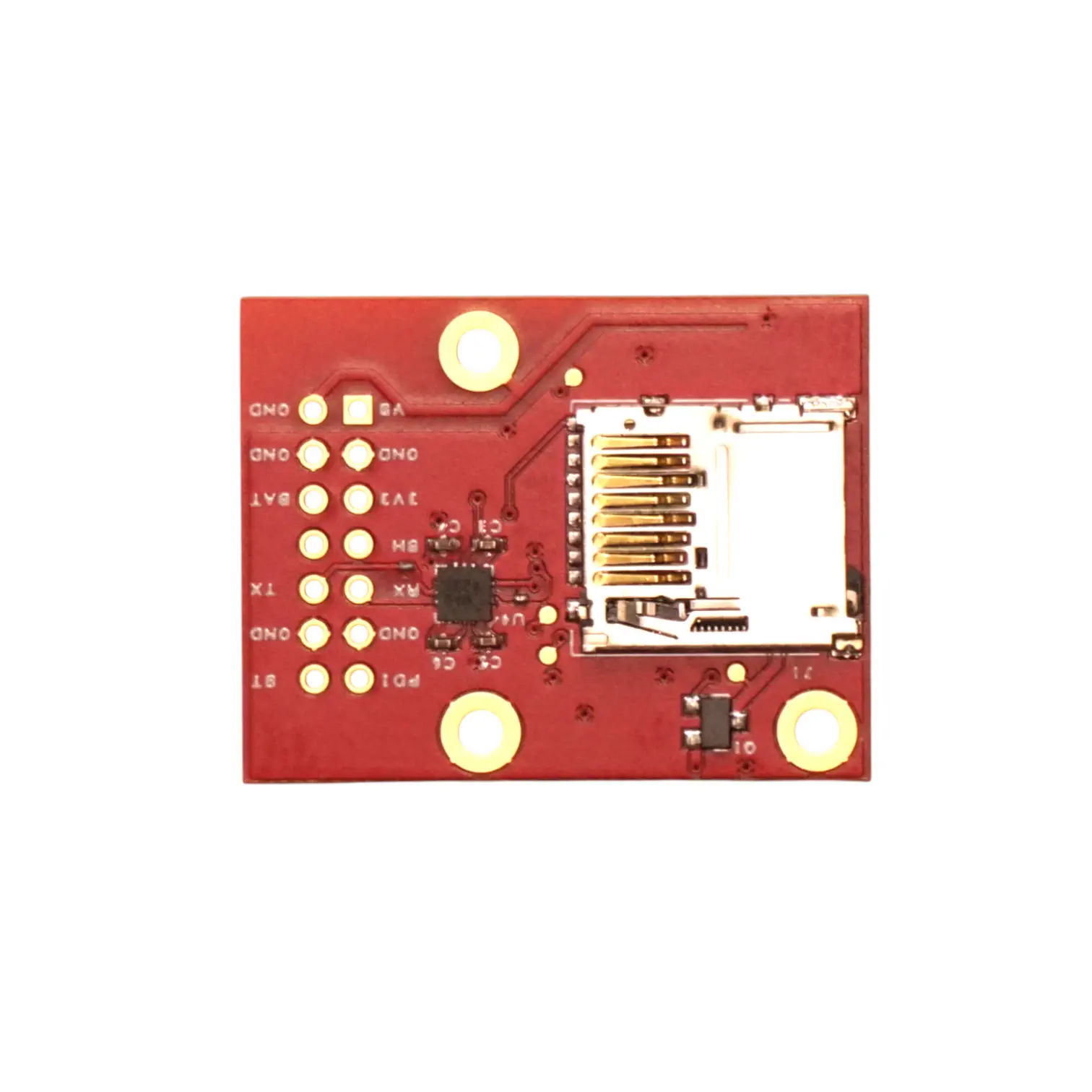

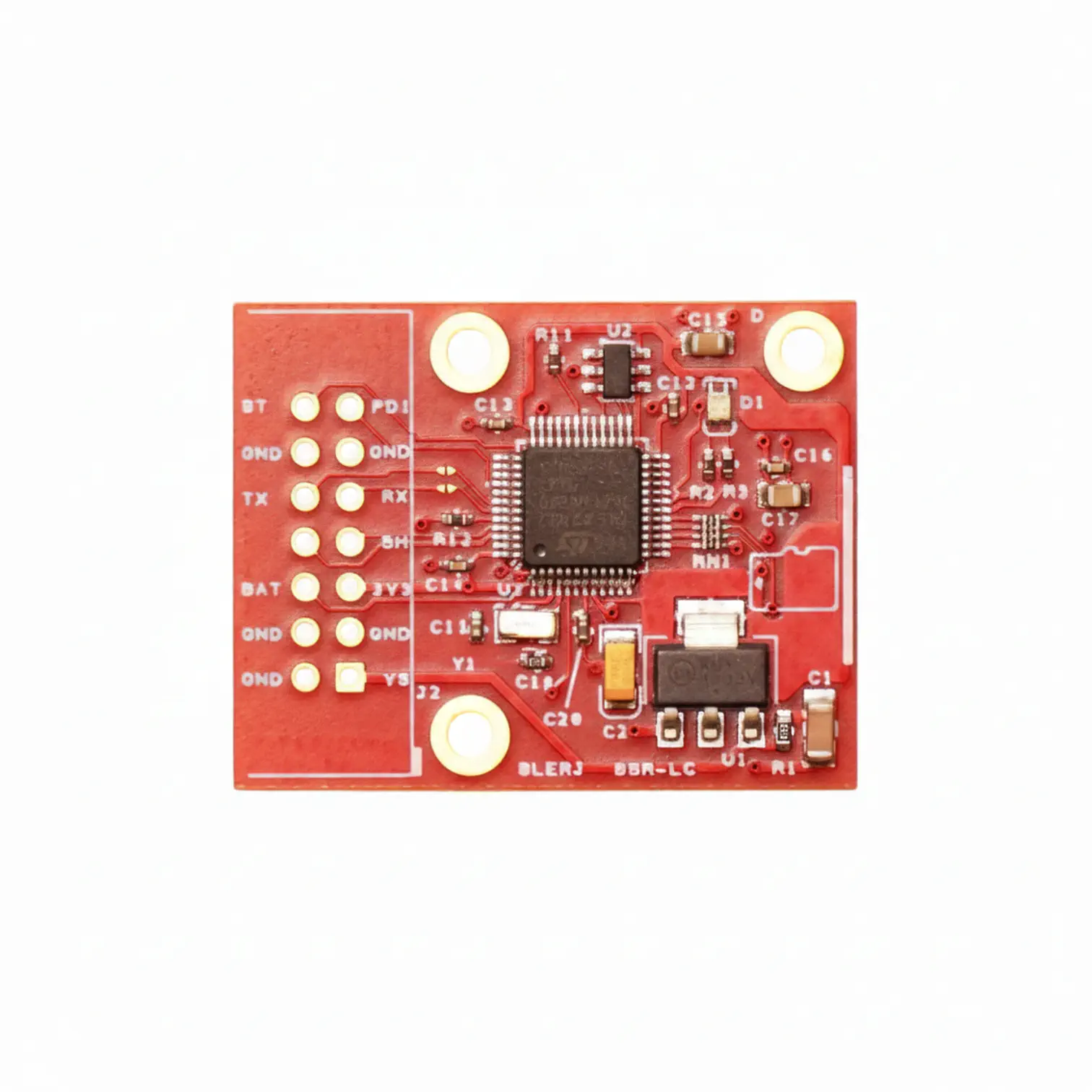

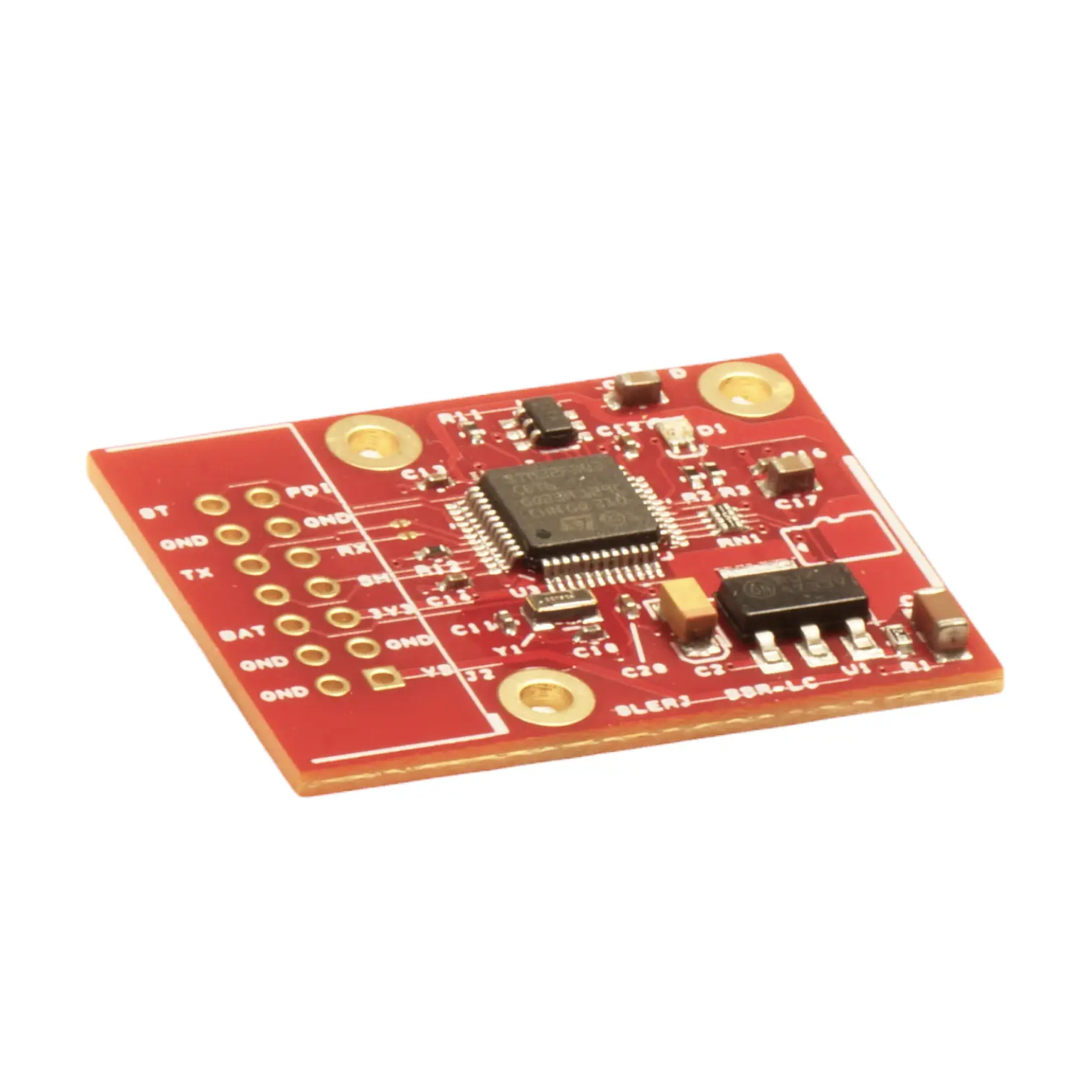

SSR-LC Single Channel Serial Data Logger

SSR-LC Serial Data Logger
  • Availability and Price


    Adjust quantity in cart.

To keep up with demand, we've outsourced the assembly of our boards.   Our new contract manufacturer selects board color at build time, so color may vary.

SSR-LC New Colors

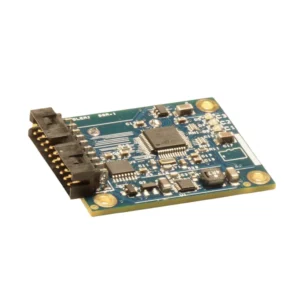

The SSR-LC is a low cost addition to the Slerj serial data logger product line.  It provides advanced features of the 3-channel Slerj SSR-1, including time tagged archives, a real-time clock, flexible record control, as well as easy setup and customization for your application.  The SSR-LC is available in both RS232 and 3.3V CMOS versions.  Data can be recorded automatically at power up, on command through a digital or PWM input, or using an interactive shell interface.  Complete details are provided in the User's Manual.

24 Apr 2017 - NEW: Firmware v1.1.0 released, supporting 230.4k baud recording, remote file download using zModem, and more.  See the release notes for details.

Logger Features

  • Up to 230.4k baud recording
  • RS232 or 3.3V CMOS (5V tolerant, 5V TTL comaptible)
  • Powered from supply of 4.5 to 15 VDC, or directly from 3.3 VDC
  • Supports MicroSD and MicroSDHC cards
  • Raw and time-tagged recording
  • Battery backed real-time clock (with externally supplied battery voltage)
  • Interactive shell for configuration and file system operations
  • Flexible record control: digital input, PWM input, software controlled, or automatic
  • Flexible recording modes (overwrite/append, user defined path and file names, etc.)

Downloads

Click here to be notified of updates.
SSR-LC User's Manual     (Rev C - 12 May 2015)
AN002 Timestamped Lines using STTP     (STTP_v1_4.zip)
AN001 Timestamped Line Output     (AN001-Files.zip)
SSR-LC Firmware Update v1.1.0     (release notes)
