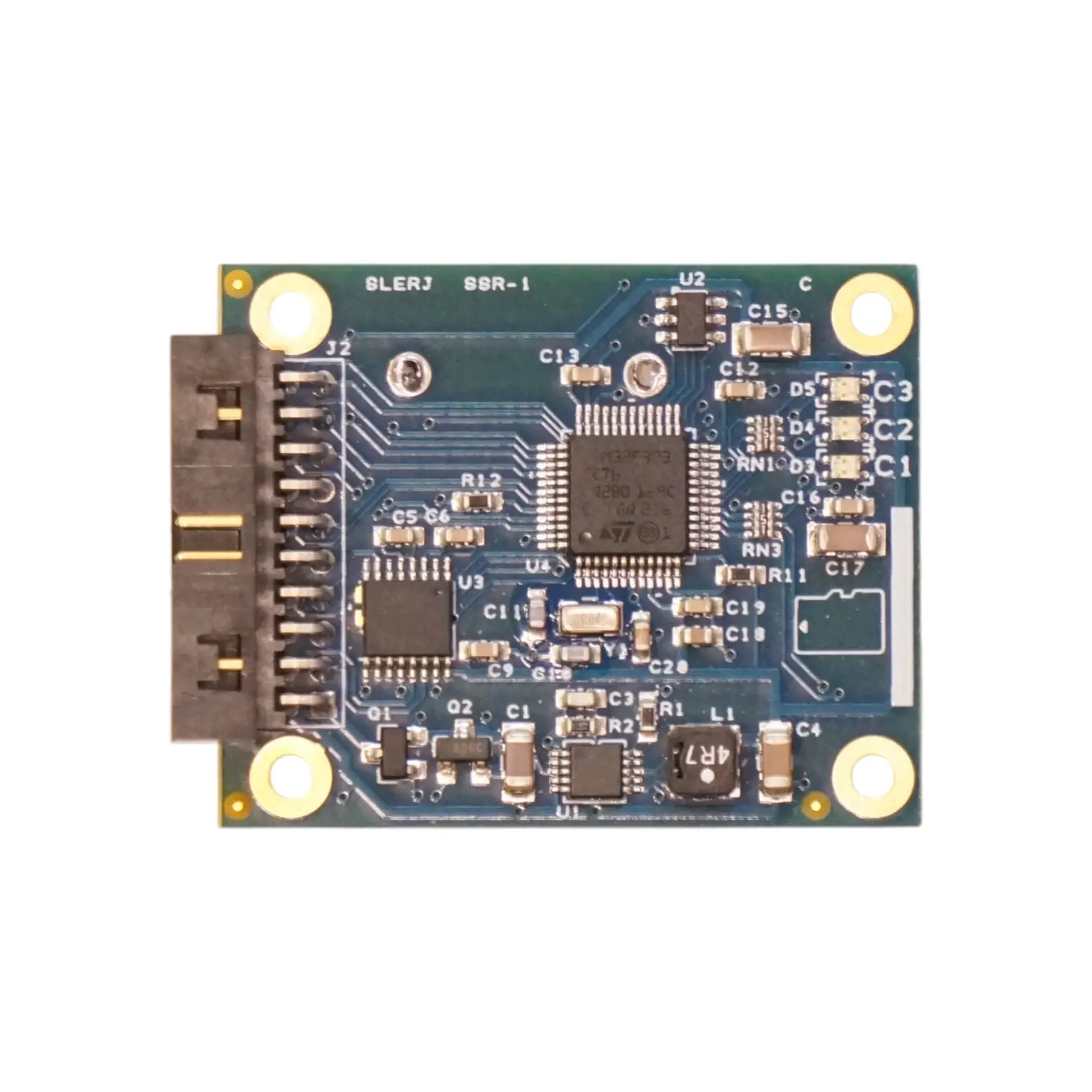

The SSR-1 is a three channel serial data logger with advanced features including time-tagged recording, a real-time clock, flexible record control, as well as easy setup and customization for your application.  The SSR-1 is available in both RS232 and 3.3V CMOS versions (channel 1 and 2). The third channel is 5V tolerant 3.3V CMOS.  Data can be recorded automatically at power up, on command through a digital or PWM input, or using an interactive shell interface.  Complete details are provided in the User’s Manual.
Logger Features
- Records three serial channels simultaneously
- USB file access
- Up to 230.4k baud recording on all channels (SR122T)
High-speed variant supports 921.6k baud (SR122TH/CCTH) - Two RS232 channels (SR122T)
or two 3.3V CMOS channels (5V tolerant) (SR1CCT) - Wide supply voltage (4.5 to 32VDC)
- Supports microSD, microSDHC, and microSDXC(>32GB) cards

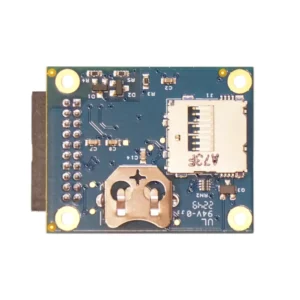

- Battery backed real time clock
- Raw and time-tagged recording
- Interactive shell for configuration and file system operations
- Flexible record control: digital input, PWM input, software controlled, and automatic
- Flexible recording modes (overwrite/append, user defined path and file names, etc.)

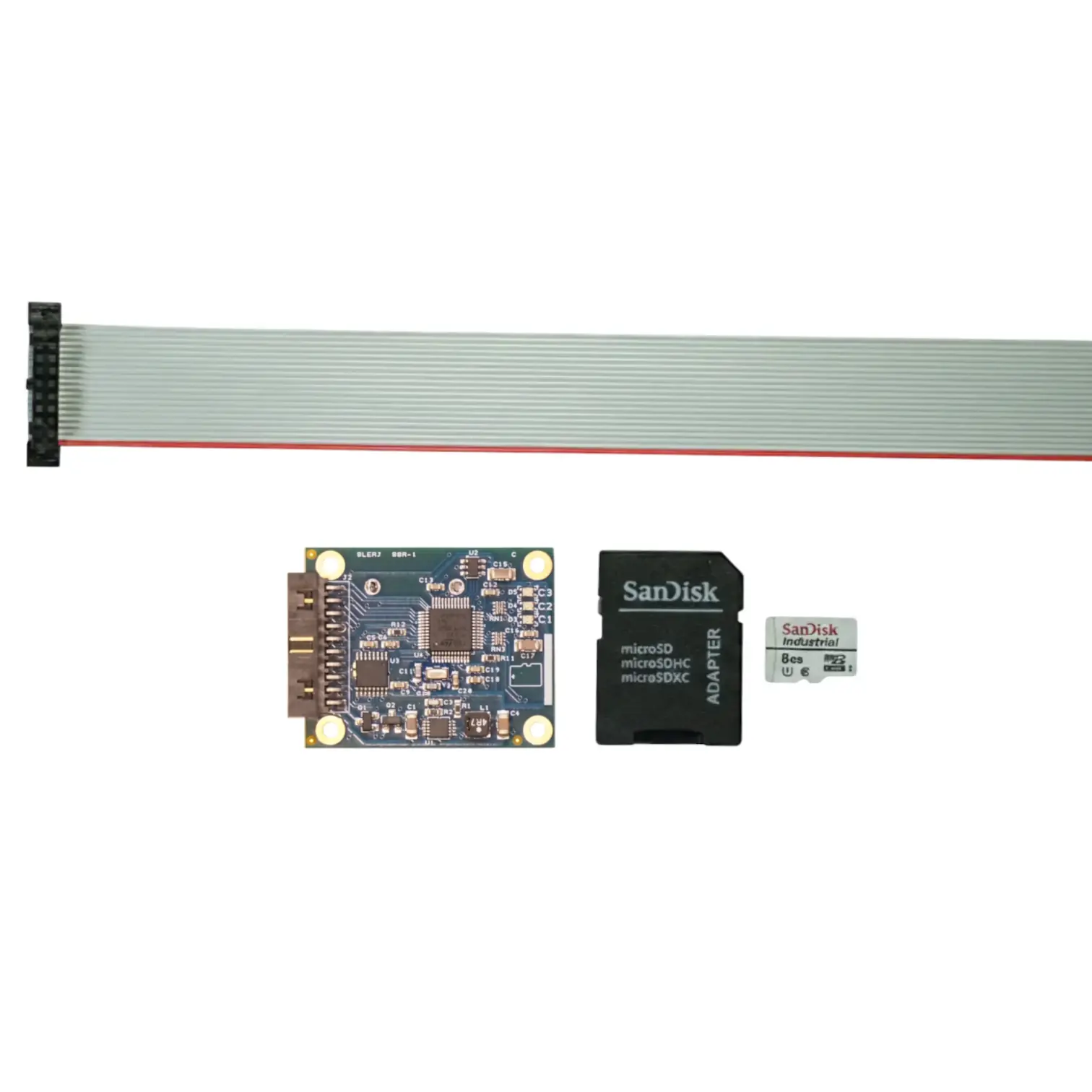

Package Contents
- SSR-1 Serial Data Logger
- Mating connector with 9 inch cable (SR1-MC9)
- Lithium coin cell battery (US Shipments Only)
- Industrial 8GB microSD card
64GB card with the High Speed variant
Part numbers
SR122T – SSR-1 standard RS-232 channel configuration
SR122TH – SSR-1 with RS-232 and High Speed option
SR1CCT – SSR-1 with 3.3V CMOS channels instead of RS-232
SR1CCTH – SSR-1 with 3.3V CMOS and High Speed option
